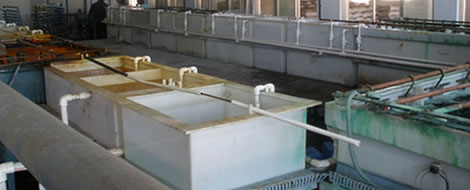

Bright Nickel Plating Process
Rectifire Capacity :
8/12 Volt - 250/500/750/1000/1500 Amps
Air/ Oil cooled , with deamer and digital meters
Additional facility : Timer, Temp. Controller, Amp Totalizer, Dozing pump for Brighteners.
Air Agitation Pump :
Vacuum type blower @ Capacity of 0.5/1/2/3/5 HP with Air Filters
Water Cooled Air pump with Mechanical Seal @ Capacity of 1/2/5 HP
Tank :
Fabricated with MS and Rubber Lined/ PVC lined
Fabricated with PP with wall thickness of 10/12 mm
Additional facility : Air Agitation Coil, Heater Brackets, Anode-Cathode Brackets, Outside FRP lining.
Filter Pump :
125 LPM Magnetic Pump with PP Chamber @ 2500 LPH Actual Filtration Capacity
1 HP Mechanical Pump with MS Chamber @ 5000 LPH Actual Filtration Capacity
2 HP Mechanical Pump with MS Chamber @ 10000 LPH Actual Filtration Capacity
Heaters :
Titanium / Silica Heaters @ Capacity of 1/2/2.5/3 KW
Anode Basket :
Titanium Basket with solid huck with PP Bag.
Operating Parameters :
| Temperature : | 50 to 55 ° C. |
| Voltage : | 4 to 6 Volt DC. |
| Current : | 20 to 40 Amps/ Sq. Ft. |
| Bath Composition : Nickel Sulphate | 220-250 gms/ltr |
| Nickel Chloride : | 35 – 45 gms/ltr. |
| Boric Acid : | 40 – 50 gms/ltr. |
| Additive (Initial) : | 18 – 20 ml/ltr. |
| Brightener(Initial) : | 0.5- 1 ml/ltr. |
| Anodes : | Pure Nickel Anode covered with 10 Micron PP Bag. |
| Rate of Deposition : | 25 micron in 30 min @ 40 Amp/sq.ft. |
| Filtration : | 2 Cycles of total tank volume per hr. |
| Air Agitation : | Vigorous and continue while process, Oil free Air should be employed |
| Brightener maintenance : | Additive @ 200 to 400 ml/ KAH Brightener @ 100 to 200 ml/ KAH |
