Count Totalizers
Model : ST-9601
Count Totalizers (Stroke Counter/Pulse Totalizer)

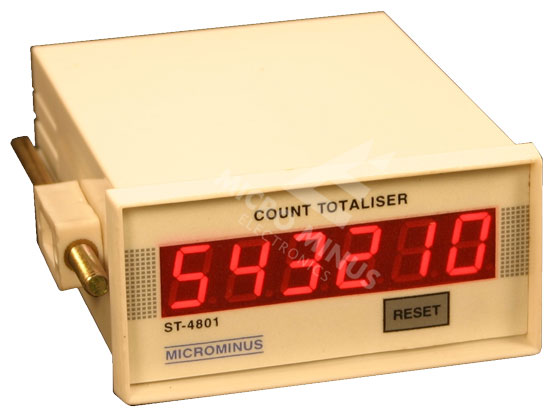

Model : ST-4801

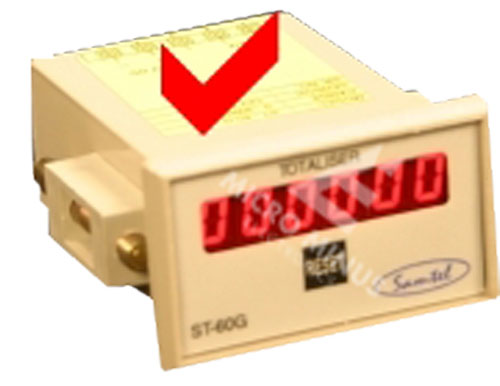

Model : ST-60G
(Direct Replacement of Impulse Counter)
Specifications :
- Input : NPN Proximity, Limit Switch, Micro Switch, 12V, 24V, 110V, 230V AC Pulse)
- Reset on front by key (Optionally at the back)
- Non-Volatile memory to store last count at power fail.
- Supply : 230V AC ± 10%, 50 Hz or 12V AC (Any Voltage on Demand)
Advantages :
- Counting at high speed is possible.
- No wear out of mechanical parts as compared to mechanical counters.
- Counting Rate : Low Speed up to 1000 pulse/min
- High Speed beyond 1000 pulse/min
| Model Series | ST-9601 | ST-9601 | ST-4801 | ST-60G |
| Size (mm) | 96 x 96 | 72 x 72 | 48 x 96 | 29 x 55 |
| Cutout (mm) | 92 x 92 | 68 x 68 | 44 x 92 | 25 x 51 |
| Depth (mm) | 120 | 120 | 120 | 85 |
| Range | 0-999999 | 0-999999 | 0-999999 | 0-999999 |
| Mounting | Flush Panel Mounting | Flush Panel Mounting | Flush Panel Mounting | Flush Panel Mounting |
Remark : DPM – 9601 Model is available into the Body of Analog Meters.
Connection Diagram :
| L | N | E | R | G | B |
| Supply Input | Proximity Switch NPN Type |
| L | N | E |
| Supply Input | Limit Switch (or 12V etc.) |
